| 整机参数Machine Parameters | 整机参数Machine Parameters | |||
| 项目Project | 参数Parameter(s) | 项目Project | 参数Parameter(s) | |
| zui小转弯半径（MM）Minimum turning radius | 4500 | 车身长度（MM）Body length | 5240 | |
| 理论爬坡角度（°）Theoretical climbing angle | 15 | 车身宽度（MM）Body width | 1850 | |
| zui大行驶速度（KM）Maximum travel speed | 32 | 车身高度（MM）Body height | 2600 | |
| zui小行驶速度（KM）Minimum travel speed | 8 | zui小离地间隙（MM）Minimum ground clearance | 255 | |
| zui大卸载高度（MM）Maximum unloading height | 3200 | 轮距（MM）Track width | 1500 | |
| 空载提升时间（S）No-load lifting time | ≤4.8 | 额定载重（KG）Rated load capacity | 1500 | |
| 空载下降时间（S）No-load lowering time | ≤3.1 | 整机重量（KG）Overall weight | 3700 | |
| 空载卸料时间（S）No-load discharging time | ≤1.2 | 铲斗长、深、高（MM）Length, depth and height of the bucket | 1800.490.785 | |
| 三项和（S）Three-item sum | ≤9.1 | 斗容（m3）Bucket capacity | 0.8 | |
| 轴距（MM）Wheelbase | 2280 | zui大崛起力（KN）Maximum lifting force | 22 | |
| 卸料距离（MM）Discharging distance | 740 | zui大牵引力（KN）Maximum traction force | 28 | |
| 卸料角度（°）Discharging angle | 32.5 | 联合工况牵引力（KN)Traction force under combined working conditions | 26 | |
| 发动机参数Engine parameters | 传动系统参数Transmission system parameters | |||
| 项目Project | 参数Parameter(s) | 项目Project | 参数Parameter(s) | |
| 厂家Manufacturer | 云内国二Yunnei National II | 型式Type | 265双高低速265 dual high and low speeds | |
| 额度功率（KW）Rated power (KW) | 58 | 变速档位Transmission gears | 前4后44 front and 4 rear | |
| 额度转速（r/min）Rated speed | 2400 | 制动形式Brake type | 气刹Air brake | |
| 气缸数Number of cylinders | 4 | 车桥Axle | 小轮边Small wheel hub | |

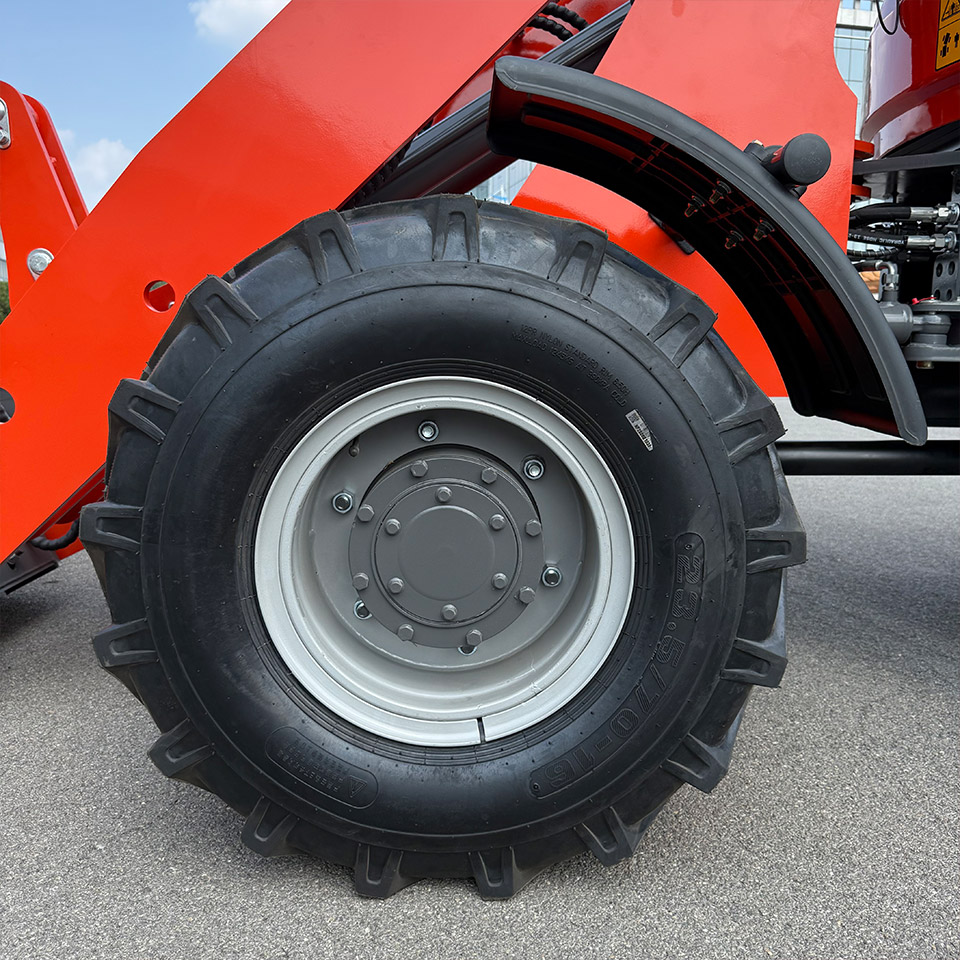

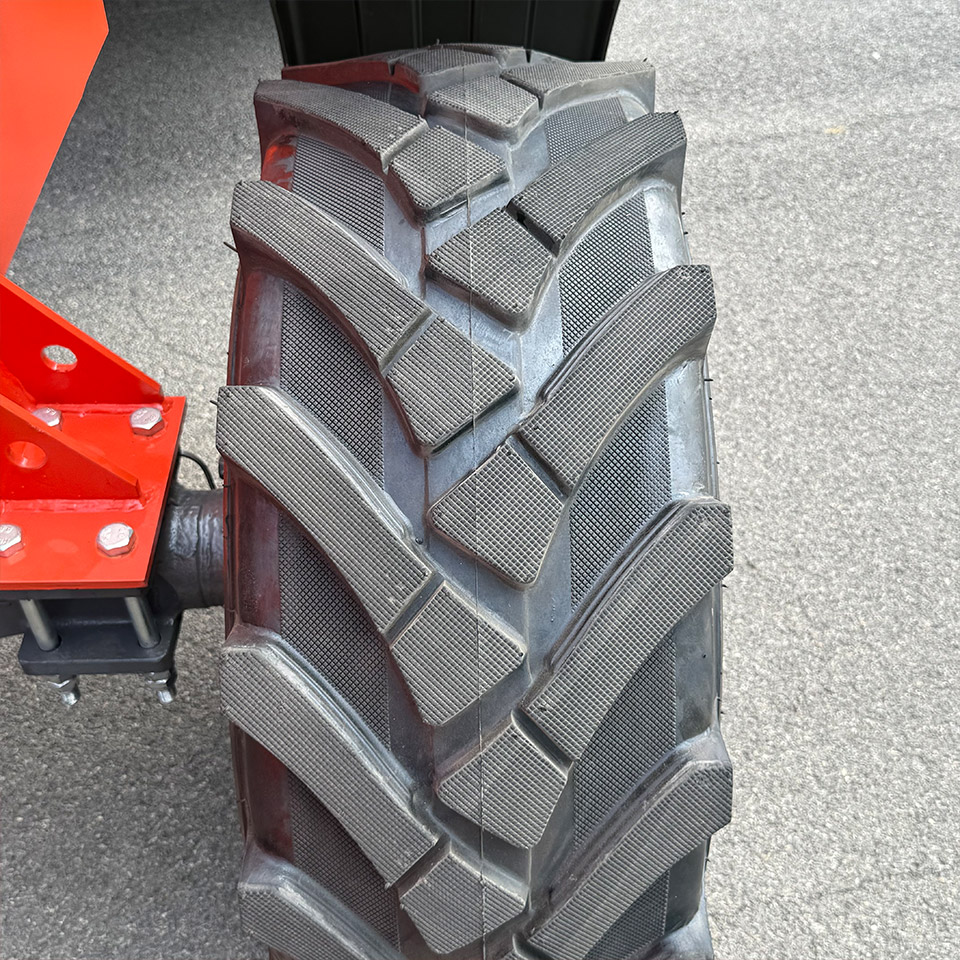

| 轮胎型号Tire model | 23.5-70/16 | |||
| 前轮气压Front wheel pressure | 0.33 | |||
| 后轮气压Rear wheel pressure | 0.3 | |||
| 转向系统Steering system | 加油容量Fuel capacity | |||
| 项目Project | 参数Parameter(s) | 项目Project | 参数Parameter(s) | |
| 型式Type | 全液压转向Full hydraulic steering | 燃油理论溶剂（L）Theoretical fuel solvent | 60 | |
| 转向角度（°）Steering angle | 32.5 | 液压油理论容积（L）Theoretical volume of hydraulic oil | 60 | |
| 系统工作压力（Mpa）System working pressure | 16 | 桥 单条（L）Bridge, single strip | 14 | |
| 发动机机油（L）Engine oil | 6.5 | |||
| 变速箱齿轮油（L）Transmission gear oil | 24 | |||
| 制动系统（L）Brake system | 3 | |||
